□镍锌系列 (返回)
|

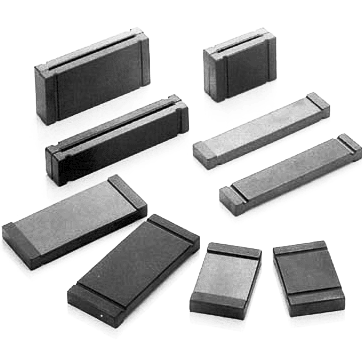

Split Core For Flat
cable [Ni - Zn]
|

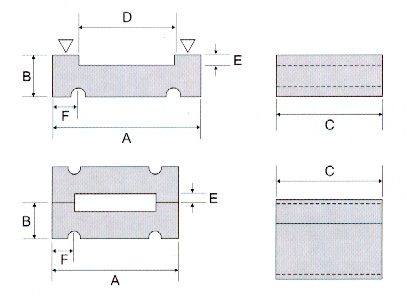

TYPE
|
A
|
B
|
C
|
D
|
E
|
F
|
IMPE
|
DANCE |
|
UNIT
|
mm |
mm |
mm |
mm |
mm |
mm
|
25MHz(Ω)
|
100MHz(Ω)
|
| FP 38x6.35x10 |
38.0±1.0 |
6.35±0.25 |
10.0±0.4 |
26.6±0.7 |
0.8±0.05 |
6.25±0.2 |
30
|
84
|
| FP 38x6.35x25.4 |
38.0±0.1 |
6.35±0.25 |
25.4±0.7 |
26.6±0.7 |
0.8±0.05 |
6.25±0.2 |
100
|
170
|
| FP 45x6.35x10 |
45.0±1.0 |
6.35±0.25 |
10.0±0.4 |
34.4±0.7 |
0.8±0.05 |
6.25±0.2 |
26
|
68
|
| FP 45x6.35x28.5 |
45.0±1.0 |
6.35±0.25 |
28.5±0.7 |
34.4±0.7 |
0.8±0.05 |
6.25±0.2 |
100
|
170
|
| FP 55.1x6.35x28.5 |
55.1±1.2 |
6.35±0.25 |
28.5±0.7 |
43.7±1.0 |
0.8±0.05 |
6.25±0.2 |
80
|
170
|
| FP 63.5x6.35x13 |
63.5±1.2 |
6.35±0.25 |
13.0±0.5 |
52.0±1.2 |
0.8±0.05 |
6.25±0.2 |
40
|
110
|
| FP 63.5x6.35x15 |
63.5±1.2 |
6.35±0.25 |
15.0±0.5 |
52.0±1.2 |
0.8±0.05 |
6.25±0.2 |
40
|
120
|
| FP 63.5x6.35x28.5 |
63.5±1.2 |
6.35±0.25 |
28.5±0.7 |
52.0±1.2 |
0.8±0.05 |
6.25±0.2 |
70
|
150
|
| |
A
|
B
|
C
|
D
|
E
|
F
|
G
|
|
M-CLIP
|
15.67
|
7.11
|
12.7
|
50.8
|
7.26
|
7.82
|
0.53
|
|
|
|
|
 |
-----------------------------------------------------------------------------------------------------------------------------------
